Latest revision as of 19:25, 20 June 2025

Sanwa PM1736 Chassis
Sanwa PM1736 Neck Board

Arcade monitor found in some Sega Aero City cabinets.

  • Size: 26" curved Tube
  • Sync: 15kHz (and possibly 24 kHz as there is a cable labeled "horizontal frequency switching" at CN801/CN802).

Notes

  • Should be a drop in replacement to the Nanao MS8.
  • The red jumper cable connects to pin N for narrow image and W for wide image (stretch).

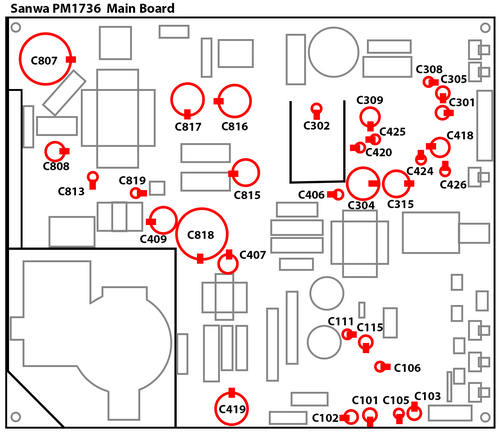

Cap Map

Location Value Voltage Diameter Height Pitch Brand Model Type Possible replacement
C819 1 50 5 13 5 Nichicon PC(M) GP MKS2C041001F00KSSD
C420 1 50 5 13 5 Nichicon PC(M) GP MKS2C041001F00KSSD
C424 1 50 5 13 5 Nichicon PC(M) GP MKS2C041001F00KSSD
C426 1 50 5 13 5 Nichicon PC(M) GP MKS2C041001F00KSSD
C308 1 50 5 13 5 Nichicon PC(M) GP MKS2C041001F00KSSD
C105 10 50 5 13 5 Nichicon PC(M) GP EEU-FC1H100LB
C106 10 50 5 13 5 Nichicon PC(M) GP EEU-FC1H100LB
C813 10 50 5 13 5 Nichicon PC(M) GP EEU-FC1H100LB
C302 10 50 5 13 5 Nichicon PC(M) GP EEU-FC1H100LB
C406 10 50 5 13 5 Nichicon PC(M) GP EEU-FC1H100LB
C301 10 50 8 13 5 Marcon CE-KD GP EEU-FC1H100LB
C305 10 100 8 13 5 Nichicon PC(M) GP ECA-2AHG100B
C808 10 200 10 20 5 Nichicon PC(M) GP ECA-2DHG100
C115 33 25 6 13 5 Nichicon PC(M) GP ECA-1HHG330B
C815 33 160 12 25 5 Nichicon PC(M) GP EEU-EB2C330
C409 33 160 12 25 5 Nichicon PC(M) GP EEU-EB2C330
C425 33 16 5 13 5 Nichicon PC(M) GP ECA-1HHG330B
C101 47 25 6 13 5 Nichicon PC(M) GP ECA-1EHG470B
C419 100 160 16 35 7.5 Nichicon PC(M) GP EEU-ED2C101S
C102 100 16 8 13 5 Nichicon PC(M) GP ECA-1CHG101B
C103 100 16 8 13 5 Nichicon PC(M) GP ECA-1CHG101B
C304 220 100 16 26 7.5 Nichicon PC(M) GP EEU-FC2A221B
C816 220 100 16 26 7.5 Nichicon PC(M) GP EEU-FC2A221B
C309 220 16 10 14 5 Nichicon PC(M) GP ECA-1CHG221B
C418 220 16 10 14 5 Nichicon PC(M) GP ECA-1CHG221B
C818 470 160 22 40 10 Marcon AWF-M10 GP LGU2C471MELZ
C807 680 200 25 40 10 Marcon AWF-M20 GP LGW2D681MELA35
C315 1000 10 13 20 5 Nichicon PC(M) GP ECA-1AHG102
C817 1000 25 16 26 7.5 Nichicon PC(M) GP EEU-FC1E102S
C90 (neck) 4.7 200 10 15 5 Nichicon PC(M) GP ECA-2EHG4R7B
C111 4.7 50 5 13 5 Nichicon PC(M) GP ECA-1HHG4R7B
C407 4.7 200 10 15 5 Nichicon PC(M) GP ECA-2EHG4R7B
