Revision as of 20:49, 15 August 2023
Main Board cap guide
| Location | Value (μF) | Voltage (V) | Diameter (mm) | Height (mm) | Pitch (mm) | Brand | Model | Type | Possible replacement |
|---|---|---|---|---|---|---|---|---|---|
| C401 | 1 | 50 | 5 | 11 | 5 | Nippon | KME | GP | MKS2C041001F00MSSD |
| C422 | 470 | 16 | 10 | 12 | 5 | Nippon | KME | GP | EEU-FC1C471 |
| C431 | 470 | 35 | 10 | 20 | 5 | Nippon | KME | GP | EEU-FC1V471B |
| C432 | 100 | 35 | 8 | 12 | 5 | Nippon | KME | GP | EEU-FR1V101B |
| C438 | 470 | 25 | 10 | 20 | 5 | Nippon | SXE | Low ESR | EEU-FR1C471B |
| C443 | 1 | 50 | 5 | 11 | 5 | Nippon | KME | GP | MKS2C041001F00MSSD |
| C446 | 33 | 16 | 5 | 11 | 5 | Nippon | KME BP | BIPOLAR GP | UEP1H330MPD |
| C447 | 47 | 16 | 5 | 11 | 5 | Nippon | KME | GP | EEU-FC1C470H |
| C448 | 100 | 35 | 8 | 12 | 5 | Nippon | KME | GP | EEU-FR1V101B |
| C449 | 33 | 16 | 5 | 11 | 5 | Nippon | KME | GP | EKZE160ETD330ME07D |
| C501 | 1 | 50 | 5 | 11 | 5 | Nippon | KME | GP | MKS2C041001F00MSSD |
| C521 | 33 | 16 | 6 | 12 | 5 | Sanyo | OS-CON | Ultra Low ESR | RNS1C330MDS1JT |
| C560 | 0,47 | 160 | 6 | 12 | 6 | Nippon | KME | GP | ECQ-E2474JBB |
| C561 | 1 | 200 | 6 | 12 | 6 | Nichicon | PR(M) | Low ESR | ECA-2DHG010 |
| C562 | 4,7 | 25 | 5 | 11 | 5 | Nichicon | PR(M) | Low ESR | ESW475M025AC3AA |
| C565 | 4,7 | 100 | 5 | 11 | 5 | Nippon | KME | GP | 100YXJ4R7M5X11 |
| C566 | 4,7 | 100 | 5 | 11 | 5 | Nippon | KME | GP | 100YXJ4R7M5X11 |
| C570 | 22 | 250 | 12 | 24 | 5 | Nippon | KME | GP | EEU-ED2E220B |
| C572 | 47 | 16 | 5 | 11 | 5 | Nippon | KME | GP | EEU-FC1C470H |
| C573 | 470 | 16 | 10 | 12 | 5 | Nippon | KME | GP | EEU-FC1C471 |
| C574 | 33 | 35 | 5 | 11 | 5 | Nippon | KME | GP | EEU-FR1V330 |
| C576 | 470 | 16 | 10 | 12 | 5 | Nippon | KME | GP | EEU-FC1C471 |
| C577 | 1 | 100 | 5 | 11 | 5 | Nippon | KME | GP | MKS2D041001K00MSSD |
| C580 | 1 | 50 | 5 | 11 | 5 | Nippon | KME | GP | MKS2C041001F00MSSD |
| C905 | 1000 | 180 | 30 | 45 | 10 | Nippon | KMG | GP | 200VXH1000MEFCSN25X45 |
| C906 | 100 | 160 | 18 | 39 | 7,5 | Nippon | KHA? | GP? | EEU-ED2C101S |
| C908 | 47 | 16 | 5 | 11 | 5 | Nippon | KME | GP | EEU-FC1C470H |
| C909 | 100 | 160 | 18 | 39 | 7,5 | Nippon | KHA? | GP? | EEU-ED2C101S |
| C910 | 220 | 50 | 10 | 24 | 5 | Nippon | SXE | Low ESR | EEU-FR1H221 |
| C911 | 220 | 25 | 8 | 12 | 5 | Nichicon | PR(M) | Low ESR | EEU-FR1E221B |
| C913 | 220 | 16 | 8 | 12 | 5 | Nippon | KME | GP | EEU-FR1C221B |

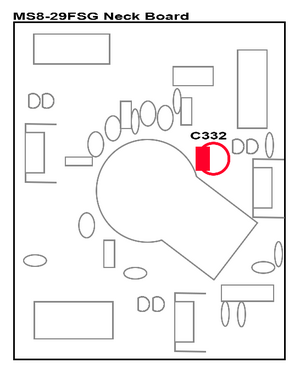

Neck Board cap guide
| Location | Value (μF) | Voltage (V) | Diameter (mm) | Height (mm) | Pitch (mm) | Brand | Model | Type | Possible replacement |
|---|---|---|---|---|---|---|---|---|---|
| C332 | 10 | 250 | 10 | 20 | 5 | Nippon | KME | GP | 250BXC10MEFC10X16 |
IC103 cap guide
| Location | Value (μF) | Voltage (V) | Diameter (mm) | Height (mm) | Pitch (mm) | Brand | Model | Type | Possible replacement |
|---|---|---|---|---|---|---|---|---|---|
| C420 | 1 | 50 | 5 | 11 | 5 | ELNA | RE | GP? | MKS2C041001F00MSSD |
| C532 | 1 | 50 | 5 | 11 | 5 | ELNA | RE | GP? | MKS2C041001F00MSSD |
IC402 cap guide
| Location | Value (μF) | Voltage (V) | Diameter (mm) | Height (mm) | Pitch (mm) | Brand | Model | Type | Possible replacement |
|---|---|---|---|---|---|---|---|---|---|
| C1 | 1 | 50 | 5 | 11 | 5 | Nippon | KME | GP | MKS2C041001F00MSSD |
| C2 | 1 | 50 | 5 | 11 | 5 | Nippon | KME | GP | MKS2C041001F00MSSD |
| C3 | 1 | 50 | 5 | 11 | 5 | Nippon | KME | GP | MKS2C041001F00MSSD |
| C4 | 1 | 50 | 5 | 11 | 5 | Nippon | KME | GP | MKS2C041001F00MSSD |
