Legend
| Lh
|
Horizontal inductance
|
| Lv
|
Vertical inductance
|
| Rh
|
Horizontal resistance
|
| Rv
|
Vertical resistance
|
Hantarex
POLO 1 28"
| Lh
|
1.49mh
|
| Lv
|
24.5mh
|
| Rh
|
1.6 ohm
|
| Rv
|
11.0 ohm
|
POLO 2 auto sync 28"
| Lh
|
1.40mh
|
| Lv
|
7.3mh
|
| Rh
|
2.1 ohm
|
| Rv
|
5.6 ohm
|
POLOSTAR tri sync 32"
| Lh
|
0.280mh
|
| Lv
|
7.2mh
|
| Rh
|
2.4ohm
|
| Rv
|
7.4 ohm
|
Nanao
Nanao MS8-18B
| Lh
|
0.8mh
|
| Lv
|
113.5mh
|
| Rh
|
1.53 ohms
|
| Rv
|
51.6 ohms
|
Measured by cools on 22/10/2012
Nanao ms2932 31 kHz chassis 29" curved tube
| Lh
|
0.196mh
|
| Lv
|
13.8mh
|
| Rh
|
0.6 ohms
|
| Rv
|
6.9 ohms
|
Nanao ms8 fan 29"
| Lh
|
0.355mh
|
| Lv
|
18.7mh
|
| Rh
|
1.0 ohm
|
| Rv
|
7.9ohm
|
Nanao ms9 t/su 29"
| Lh
|
0.315mh
|
| Lv
|
18mh
|
| Rh
|
0.7ohm
|
| Rv
|
9.3ohm
|
Sanwa
Sanwa V21 PM1723E 18"
| Lh
|
1.9mh
|
| Lv
|
113.8mh
|
| Rh
|
2.5ohm
|
| Rv
|
57.5ohm
|
Measured by cools on 13/06/2012
Sanwa pm1745 29"
| Lh
|
0.405mh
|
| Lv
|
18mh
|
| Rh
|
0.9ohm
|
| Rv
|
8.5ohm
|
Sanwa es2931 31 kHz chassis 29" semi flat tube
| Lh
|
0.300mh
|
| Lv
|
11.7mh
|
| Rh
|
0.6 ohms
|
| Rv
|
5.3 ohms
|
Sony
Sony A68KZJ50X 29" Flat
| Lh
|
0.82 mh
|
| Lv
|
20.1 mh
|
| Rh
|
1.1 ohm
|
| Rv
|
8.8 ohm
|
Toshiba
Toshiba PB-6643 aka D29CR55 29"
| Lh
|
0.38mh
|
| Lv
|
14.5mh
|
| Rh
|
0.6ohm
|
| Rv
|
5.4ohm
|
Toshiba PB-7534 aka K29CH55 29"
| Lh
|
0.239 mh
|
| Lv
|
11.88 mh
|
| Rh
|
0.8 ohm
|
| Rv
|
5.3 ohm
|
Toshiba A68KJU96X (Capcom Impress)
| Lh
|
0.34 mh
|
| Lv
|
18.72 mh
|
| Rh
|
0.6 ohm
|
| Rv
|
6.5 ohm
|
Wells Gardner
D9200
| Lh
|
0.241 mH
|
| Lv
|
5.91 mH
|
| Rh
|
0.4 ohm
|
| Rv
|
2.5 ohm
|
Other
A68QBC230X
| Lh
|
0.81 mh
|
| Lv
|
15.90 mh
|
| Rh
|
1.3 ohm
|
| Rv
|
7.7 ohm
|

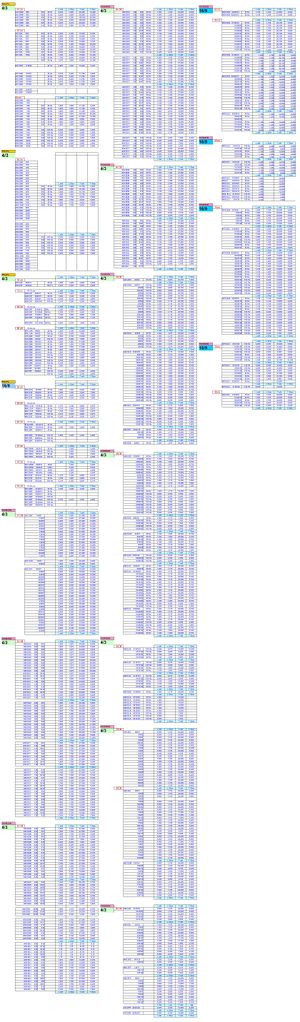

Deflection Yoke Data (TV tubes)
Deflection Yoke Data
