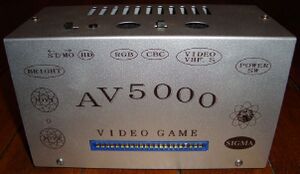

Sigma AV5000
| Sigma AV5000 | |
|---|---|
 | |
| Wiring | JAMMA |
| Controller | External |
General Info
Uses the "deep" DB-15 female connectors which were common/standard in the Japanese market. "Standard" metal DB-15 cables will not fit because they are too shallow; you can purchase replacement Neo Geo controller cables and then customize to your needs by adding the appropriate connector.
Mega Drive 1/Neo Geo composite A/V cables work without modification. S-Video and RGB pinouts are different, and are not compatible; check the linked pinout page below to confirm your cable is suitable for use with this device.
Replacement Parts
- 44-pin female receptacle: Hirose CR7E-44DB-3.96DS (discontinued 11/2025)
Gallery
External Links
Sigma SuperGun Pinouts & Miscellaneous Information (archived from the original) Sigma Supergun Pinouts
