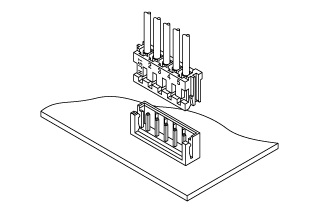

JST EH

Description

Used in various arcade systems and parts.

Datasheet/Manual

Datasheet Also on JST's website.

Part numbers Connectors

• EHR-1 - 1 pins
• EHR-2 - 2 pins
• EHR-3 - 3 pins
• .
• EHR-15 - 15 pins

Pin is SEH-001T-P0.6 for 30-22 AWG wire

Found in

Among other things, these connectors are used in:

• MS8-26 video connector

Removing pins

Super easy - just hold down the locking pin with a fine tweezer or similar, and pull out.

Where to get them

• https://order.jst-mfg.com/InternetShopCustomer/app?shopId=0&language=en&restartApplication&isQuotation=false
• http://digikey.com
