Jaleco Change Up

Jaleco Change Up
Katakana	チェンジアップ
Rōmaji	CHENJIAPPU
AKA	Change Up
Type	Cocktail
Released	1985
Dimensions	656 x 600-860 x 600-995 mm
Rotatable	No
Weight	54 kg
Power	75 W

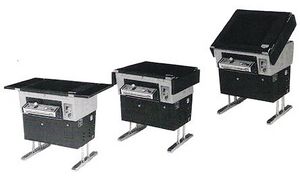

JALECO released the Change Up table arcade in 1985 in Japan, it featured 3 configurations, which was unheard of at the time :

-classic cocktail format (ワイドテーブル, romaji : waidotēburu, "wide table") with both side flaps unfolded for a wide flat top ( width maxed out for the countertop at 86cm)

-compact table (コンパクトテーブル, romaji : konpakutotēburu, "compact table") with side flaps folded (width reduced to 60cm)

-inclined monitor compact cabinet type (シングルプレイタイプ , romaji : shingurupureitaipu, "single-play type") , with side flaps folded as with compact table config, but with the additional option of having the monitor angle adjustable from flat up to 30°, in 5° increments. The small form factor is thus somewhat similar to JALECO's Pony mini sitdown cab (none other than a TEHKAN Lava clone) which was sold at the same time.

The Change Up's feet are also adjustable in height (in increments, total +10cm max). In classic(wide table) and compact modes, the table will reach maximum 700mm height, but in single play (angled monitor) mode, its height will reach a maximum of 995mm if the monitor is angled at 30° and the feet adjusted to the highest position.

Gallery

•
  ad with full specs (mid 1985)
•
  advert
•
  ad for Jaleco City Connection(1985) on Change Up cabinet
•
  Jaleco Change Up cabs showcased at event in 1985, Japan. on the left the cabs are in "compact" position (hinged flaps folded). On the right the cabs are in "single play" configuration (folded flaps + angled monitor)
•
