MAS-29

MAS-29
Type	Sitdown
Released	1994-1995?
Dimensions	810 x 700 x 1227 mm
Wiring	JAMMA
Monitor	29 in 15/24 kHz (Nanao MS9-29A / Toei TC-A292)
Rotatable	Yes
Power Supply	Nidec PKA-7010SZ

Manufactured by Usui Trading (臼井商事). Cabinets came in three sizes, this is the largest one with a 29" screen.

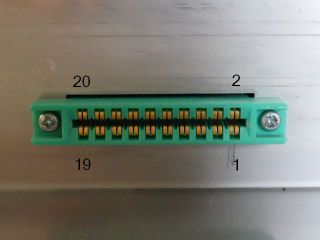

Control panel connector pinout

GND	1P B4	1P B3	1P B2	1P B1	1P RIGHT	1P LEFT	1P DOWN	1P UP	1P START
20	18	16	14	12	10	8	6	4	2
19	17	15	13	11	9	7	5	3	1
GND	2P B4	2P B3	2P B2	2P B1	2P RIGHT	2P LEFT	2P DOWN	2P UP	2P START
