Taito Egret II

From Arcade Otaku Wiki
Jump to: navigation, search

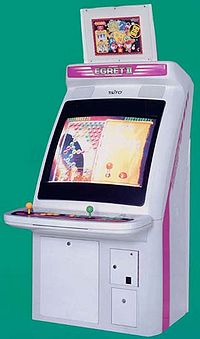

Taito Egret II
Katakana イーグレット2
Rōmaji IGURETTO II
Type Sitdown
Released 1996
Dimensions 903 x 750 x 1450 (1765 including Marquee)[1] mm
Wiring JAMMA
Monitor 29 in 15/24 kHz (Nanao MS9)
Rotatable Yes (Has rotate mechanism)
Weight 102 kg
Power Supply Taito JAMMA PSU (5v/-5v/12v)
Power 125 W

Information

The Egret II cab is popular because of its easy rotate mechanism and monitor with near flawless geometry, and stunning picture in 15kHz.

According to the manual, stock colours for balltops and buttons are Sanwa Violet and Dark Blue, with Sanwa JLF joysticks. This is in contrast to the cabinet flyer, which shows Seimitsu Green and Yellow balltops and buttons, along with LS-40 joysticks fitted with matching colour shaft covers.

In the same way as the Taito Egret 3 and Sammy Atomiswave SD, the Egret II can be easily fitted with a Taito Stereo Amp, albeit with a small wiring change required.

Egret II is not 100% JAMMA standard, with only 3 of the 4 +5V pins connected on the JAMMA connector. This can cause issues with certain boards such as Michael Jackson's Moonwalker.

Additional photos

Manuals

Warnings and dimensions

Instructions

Parts manual

Cabinet dimensions

Wiring diagram/schematic

Taito PSU M1300010B Cap list

Connectors

E2 Cab Cables.jpeg
E2 CP Cables.jpeg

Within main cabinet:

F (Stereo harness) - JST NH


S (6th button harness) - JST YL

1 - P1 Button 6 2 - P2 Button 6


Within Control Panel:

E (Earthing cable) JST YLR-02V Female (Cabinet) <--> JST YLP-02V Male (Control panel)

2 - N/C 1 - Earth


J (Player 1) JST YLP-15V Male (Cabinet) <--> JST YLR-15V Female (Control panel)

1 - Start 2 - Up 3 - Down 4 - Left 5 - Right
6 - Button 1 7 - Button 2 8 - Button 3 9 - Button 4 10 - Button 5
11 - Button 6 12 - Ground 13 - N/C 14 - N/C 15 - N/C


K (Player 2) JST YLR-12V Female (Cabinet) <--> JST YLP-12V Male (Control panel)

4 - Left 3 - Down 2 - Up 1 - Start
8 - Button 3 7 - Button 2 6 - Button 1 5 - Right
12 - Ground 11 - Button 6 10 - Button 5 9 - Button 4

Artwork

Instruction strip can hold artwork up to 536 x 85 mm. Marquee can hold artwork 294 x 405mm max (292 to inner edge) - although the maximum size without fouling on the top screw holes is 278 x 405mm.

Notes

PCB mounting board is 447x392x12mm MDF
