Cap Guide for the Wei-ya M3192D.
Make sure you are very experienced with a soldering iron or you WILL end up with a dead monitor.
This is one of the hardest boards to recap due to the sheer amount of caps, leaded solder issues, lifting pads and capacitor substitutions.

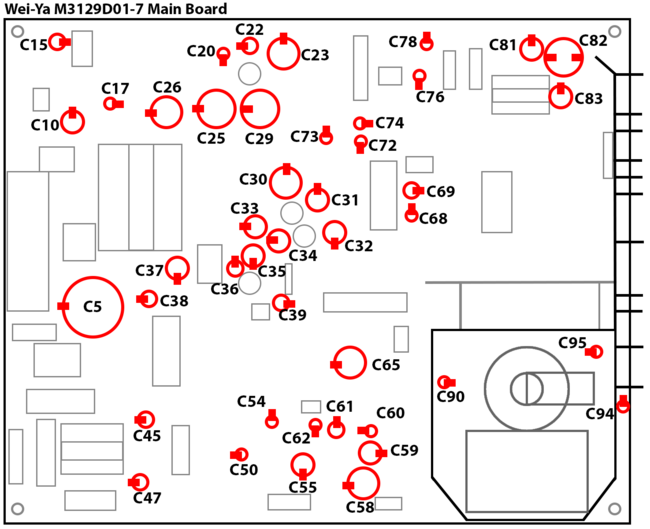

Main Board cap guide
| Location | Value | Voltage | Diameter | Height | Pitch | Brand | Model | Type | Possible replacement |
|---|---|---|---|---|---|---|---|---|---|
| C5 | 1000 | 200 | 25 | 47 | 10 | TK | LG | GP | ELXS201VSN102MP50S |
| C25 | 100 | 160 | 16 | 25 | 7 | MIEC | ? | GP | EEU-ED2C101S |
| C29 | 100 | 160 | 16 | 25 | 7 | MIEC | ? | GP | EEU-ED2C101S |
| C23 | 47 | 250 | 13 | 22 | 5 | MIEC | ? | GP | EEU-ED2E470B |
| C58 | 1000 | 35 | 13 | 22 | 5 | Giant | ? | GP | EEU-EB1V102 |
| C65 | 2200 | 35 | 13 | 30 | 5 | Giant | ? | GP | EEU-HD1V222 |
| C82 | 4.7 | 75 | 16 | 32 | 7 | MIEC | ? | BIPOLAR 5A | ?? |
| C29 | 220 | 100 | 13 | 22 | 5 | MIEC | ? | GP | ECA-2AHG221B |
| C31 | 470 | 35 | 10 | 20 | 5 | Giant | GB | GP | EEU-EB1V471B |
| C30 | 1000 | 35 | 13 | 22 | 5 | Giant | GB | GP | EEU-EB1V102 |
| C37 | 470 | 25 | 10 | 20 | 5 | Giant | GB | GP | EEU-EB1V471B |
| C35 | 470 | 25 | 10 | 20 | 5 | Giant | GB | GP | EEU-EB1V471B |
| C55 | 100 | 50 | 10 | 12 | 5 | Giant | ? | GP | EEU-EB1H101SB |
| C59 | 220 | 35 | 8 | 15 | 5 | Giant | ? | GP | EEU-EB1V221B |
| C60 | 1 | 50 | 5 | 11 | 5 | Giant | ? | GP | MKS2C041001F00MSSD |
| C61 | 47 | 50 | 6 | 11 | 5 | Giant | ? | GP | EEU-EB1J470SB |
| C54 | 1 | 50 | 5 | 11 | 5 | Giant | ? | GP | MKS2C041001F00MSSD |
| C62 | 1 | 50 | 5 | 11 | 5 | Giant | ? | GP | MKS2C041001F00MSSD |
| C50 | 10 | 50 | 5 | 11 | 5 | Giant | ? | GP | EEU-EB1H100SB |
| C47 | 100 | 16 | 6 | 11 | 5 | Giant | ? | GP | EEU-EB1E101SB |
| C45 | 100 | 16 | 6 | 11 | 5 | Giant | ? | GP | EEU-EB1E101SB |
| C38 | 100 | 16 | 6 | 11 | 5 | Giant | ? | GP | EEU-EB1E101SB |
| C39 | 100 | 20 | 6 | 11 | 5 | Giant | ? | GP | EEU-EB1E101SB |
| C36 | 100 | 20 | 6 | 11 | 5 | Giant | ? | GP | EEU-EB1E101SB |
| C33 | 10 | 350 | 10 | 15 | 5 | MIEC | ? | GP | EEU-EB2V100 |
| C34 | 10 | 350 | 10 | 15 | 5 | MIEC | ? | GP | EEU-EB2V100 |
| C20 | 10 | 50 | 5 | 11 | 5 | Giant | ? | GP | EEU-EB1H100SB |
| C22 | 100 | 16 | 6 | 11 | 5 | Giant | ? | GP | EEU-EB1E101SB |
| C15 | 100 | 20 | 6 | 11 | 5 | Giant | ? | GP | EEU-EB1E101SB |
| C10 | 220 | 25 | 8 | 11 | 5 | S.I. | ? | GP | EEU-EB1V221B |
| C17 | 4.7 | 50 | 5 | 11 | 5 | Giant | ? | GP | EEU-EB1H4R7SB |
| C72 | 10 | 50 | 5 | 11 | 5 | Giant | ? | GP | EEU-EB1H100SB |
| C73 | 10 | 50 | 5 | 11 | 5 | Giant | ? | GP | EEU-EB1H100SB |
| C74 | 10 | 50 | 5 | 11 | 5 | Giant | ? | GP | EEU-EB1H100SB |
| C76 | 1 | 50 | 5 | 11 | 5 | Giant | ? | GP | MKS2C041001F00MSSD |
| C78 | 1 | 50 | 5 | 11 | 5 | Giant | ? | GP | MKS2C041001F00MSSD |
| C81 | 100 | 50 | 10 | 12 | 5 | Giant | ? | GP | EEU-EB1H101SB |
| C83 | 100 | 50 | 10 | 12 | 5 | Giant | ? | GP | EEU-EB1H101SB |
| C69 | 1000 | 16 | 10 | 18 | 5 | S (R) | ? | GP | EEU-EB1C102 |
| C68 | 3.3 | 50 | 5 | 11 | 5 | Giant | ? | GP | EEU-EB1H3R3SB |
| C94 | 1 | 50 | 5 | 11 | 5 | Giant | ? | GP | MKS2C041001F00MSSD |
| C95 | 1 | 250 | 6 | 11 | 5 | MIEC | ? | GP | ECA-2EHG010 |
| C90 | 1 | 250 | 6 | 11 | 5 | MIEC | ? | GP | ECA-2EHG010 |
| C32 | 10 | 400 | 10 | 17 | 5 | Giant | ? | GP | EEU-EB2G100 |

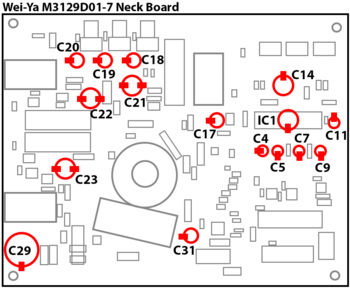

Neck Board cap guide
| Location | Value | Voltage | Diameter | Height | Pitch | Brand | Model | Type | Possible replacement |
|---|---|---|---|---|---|---|---|---|---|
| C29 | 47 | 250 | 13 | 21 | 5 | MIEC | ? | GP | EEU-ED2E470B |
| C18 | 1 | 250 | 6 | 11 | 5 | MIEC | ? | GP | ECA-2EHG010 |
| C19 | 1 | 250 | 6 | 11 | 5 | MIEC | ? | GP | ECA-2EHG010 |
| C20 | 1 | 250 | 6 | 11 | 5 | MIEC | ? | GP | ECA-2EHG010 |
| C7 | 10 | 50 | 5 | 11 | 5 | Giant | ? | GP | EEU-EB1H100SB |
| C9 | 10 | 50 | 5 | 11 | 5 | Giant | ? | GP | EEU-EB1H100SB |
| C11 | 10 | 50 | 5 | 11 | 5 | Giant | ? | GP | EEU-EB1H100SB |
| C4 | 10 | 50 | 5 | 11 | 5 | Giant | ? | GP | EEU-EB1H100SB |
| C6 | 47 | 25 | 5 | 11 | 5 | Giant | ? | GP | ECA-1EHG470B |
| IC1 | 220 | 25 | 8 | 11 | 5 | S.I. | ? | GP | EEU-EB1V221B |
| C14 | 220 | 25 | 8 | 11 | 5 | S.I. | ? | GP | EEU-EB1V221B |
| C17 | 100 | 25 | 6 | 11 | 5 | Giant | ? | GP | EEU-EB1E101SB |
| C31 | 100 | 25 | 6 | 11 | 5 | Giant | ? | GP | EEU-EB1E101SB |
| C23 | 1 | 350 | 8 | 11 | 5 | MIEC | ? | BIPOLAR | 860021373003 2x series |
| C22 | 1 | 350 | 8 | 11 | 5 | MIEC | ? | BIPOLAR | 860021373003 2x series |
| C21 | 1 | 350 | 8 | 11 | 5 | MIEC | ? | BIPOLAR | 860021373003 2x series |
Daughter Board cap guide
| Location | Value | Voltage | Diameter | Height | Pitch | Brand | Model | Type | Possible replacement |
|---|---|---|---|---|---|---|---|---|---|
| C6 | 10 | 50 | 6 | 11 | 5 | Giant | ? | BIPOLAR | ECA1HEN100 |
| C5 | 47 | 16 | 5 | 11 | 5 | Giant | ? | GP | ECA-1EHG470B |
| C3 | 100 | 16 | 6 | 11 | 5 | Giant | ? | GP | EEU-EB1E101SB |
| C4 | 100 | 16 | 6 | 11 | 5 | Giant | ? | GP | EEU-EB1E101SB |
