Wei-Ya P271: Difference between revisions
Jump to navigation
Jump to search
No edit summary |
No edit summary |
||
| Line 1: | Line 1: | ||

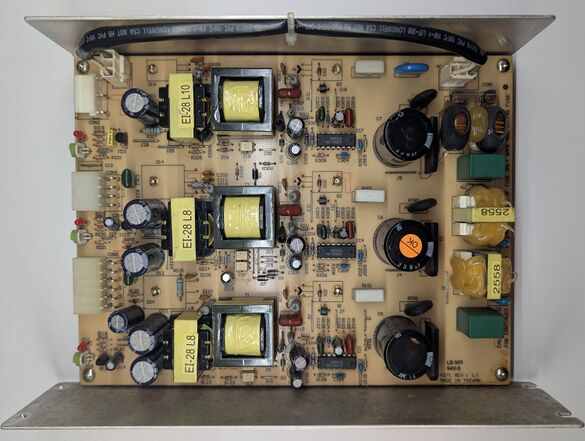

Wei-Ya | [[File:Wei-Ya P271 PCB.jpg|585px]] | ||
Wei-Ya power supply famously used in the [[Sammy Atomiswave SD]] and Taito [[Taito Vewlix|Vewlix]] / [[Taito Egret 3|Egret 3]] | |||
Has a 3.3V, 5V and 12V output perfect for modern systems but lacks the negative 5V rail. | |||
==Specs and Pinout== | |||
[[File:Wei-Ya P271 Label.jpg|300px]] | |||
==Cap guide== | |||
{| class="wikitable sortable" | |||
! Location !! Value !! Voltage !! Diameter !! Height !! Pitch !! Brand !! Model !! Type !! Possible replacement | |||
|- | |||
| C5 || 330 || 200 || 22 || 31 || 10 || TK || LG || GP || LGR2D331MELZ30 | |||
|- | |||
| C6 || 330 || 200 || 22 || 31 || 10 || TK || LG || GP || LGR2D331MELZ30 | |||
|- | |||
| C7 || 330 || 200 || 22 || 31 || 10 || TK || LG || GP || LGR2D331MELZ30 | |||
|- | |||
| C101 || 1 || 50 || 5 || 13 || 5 || S || R || GP || MKS2C041001F00MSSD | |||
|- | |||
| C201 || 1 || 50 || 5 || 13 || 5 || S || R || GP || MKS2C041001F00MSSD | |||
|- | |||
| C301 || 1 || 50 || 5 || 13 || 5 || S || R || GP || MKS2C041001F00MSSD | |||
|- | |||
| C106 || 68 || 63 || 8 || 11 || 5 || GIANT || || ? || UPJ1J680MPD6TD | |||
|- | |||
| C206 || 68 || 63 || 8 || 11 || 5 || GIANT || || ? || UPJ1J680MPD6TD | |||
|- | |||
| C306 || 68 || 63 || 8 || 11 || 5 || GIANT || || ? || UPJ1J680MPD6TD | |||
|- | |||
| C105 || 47 || 50 || 6.3 || 13 || 5 || S (R) || || ? || EEU-EB1J470SB | |||
|- | |||
| C205 || 47 || 50 || 6.3 || 13 || 5 || S (R) || || ? || EEU-EB1J470SB | |||
|- | |||
| C305 || 47 || 50 || 6.3 || 13 || 5 || S (R) || || ? || EEU-EB1J470SB | |||
|- | |||
| C115 || 33 || 35 || 5 || 13 || 5 || GIANT || || ? || EEU-EB1J330SB | |||
|- | |||
| C112 || 1000 || 16 || 10 || 21 || 5 || GIANT || GB || ? || EEU-EB1C102 | |||
|- | |||
| C111 || 3300 || 16 || 13 || 25 || 5 || GIANT || GB || ? || UHW1C332MHD | |||
|- | |||
| C113 || 3300 || 16 || 13 || 25 || 5 || GIANT || GB || ? || UHW1C332MHD | |||
|- | |||
| C211 || 3300 || 10 || 13 || 25 || 5 || GIANT || GB || ? || UHW1C332MHD | |||
|- | |||
| C213 || 3300 || 10 || 13 || 25 || 5 || GIANT || GB || ? || UHW1C332MHD | |||
|- | |||
| C311 || 2200 || 25 || 13 || 25 || 5 || GIANT || GB || ? || UHW1E222MHD1TO | |||
|- | |||
| C114 || 2.2 || 50 || 5 || 13 || 5 || S (R) || || ? || EEU-EB1H2R2SB | |||
|- | |||
| C214 || 2.2 || 50 || 5 || 13 || 5 || S (R) || || ? || EEU-EB1H2R2SB | |||
|} | |||
==Note== | ==Note== | ||
This PSU is designed for 100V mains input with a tight upper tolerance. Plugging it straight into 120VAC may lead to unstable 12V output. | This PSU is designed for 100V mains input with a tight upper tolerance. Plugging it straight into 120VAC may lead to unstable 12V output. | ||
Revision as of 16:44, 24 December 2024
Wei-Ya power supply famously used in the Sammy Atomiswave SD and Taito Vewlix / Egret 3
Has a 3.3V, 5V and 12V output perfect for modern systems but lacks the negative 5V rail.
Specs and Pinout
Cap guide
| Location | Value | Voltage | Diameter | Height | Pitch | Brand | Model | Type | Possible replacement |
|---|---|---|---|---|---|---|---|---|---|
| C5 | 330 | 200 | 22 | 31 | 10 | TK | LG | GP | LGR2D331MELZ30 |
| C6 | 330 | 200 | 22 | 31 | 10 | TK | LG | GP | LGR2D331MELZ30 |
| C7 | 330 | 200 | 22 | 31 | 10 | TK | LG | GP | LGR2D331MELZ30 |
| C101 | 1 | 50 | 5 | 13 | 5 | S | R | GP | MKS2C041001F00MSSD |
| C201 | 1 | 50 | 5 | 13 | 5 | S | R | GP | MKS2C041001F00MSSD |
| C301 | 1 | 50 | 5 | 13 | 5 | S | R | GP | MKS2C041001F00MSSD |
| C106 | 68 | 63 | 8 | 11 | 5 | GIANT | ? | UPJ1J680MPD6TD | |
| C206 | 68 | 63 | 8 | 11 | 5 | GIANT | ? | UPJ1J680MPD6TD | |
| C306 | 68 | 63 | 8 | 11 | 5 | GIANT | ? | UPJ1J680MPD6TD | |
| C105 | 47 | 50 | 6.3 | 13 | 5 | S (R) | ? | EEU-EB1J470SB | |
| C205 | 47 | 50 | 6.3 | 13 | 5 | S (R) | ? | EEU-EB1J470SB | |
| C305 | 47 | 50 | 6.3 | 13 | 5 | S (R) | ? | EEU-EB1J470SB | |
| C115 | 33 | 35 | 5 | 13 | 5 | GIANT | ? | EEU-EB1J330SB | |
| C112 | 1000 | 16 | 10 | 21 | 5 | GIANT | GB | ? | EEU-EB1C102 |
| C111 | 3300 | 16 | 13 | 25 | 5 | GIANT | GB | ? | UHW1C332MHD |
| C113 | 3300 | 16 | 13 | 25 | 5 | GIANT | GB | ? | UHW1C332MHD |
| C211 | 3300 | 10 | 13 | 25 | 5 | GIANT | GB | ? | UHW1C332MHD |
| C213 | 3300 | 10 | 13 | 25 | 5 | GIANT | GB | ? | UHW1C332MHD |
| C311 | 2200 | 25 | 13 | 25 | 5 | GIANT | GB | ? | UHW1E222MHD1TO |
| C114 | 2.2 | 50 | 5 | 13 | 5 | S (R) | ? | EEU-EB1H2R2SB | |
| C214 | 2.2 | 50 | 5 | 13 | 5 | S (R) | ? | EEU-EB1H2R2SB |
Note
This PSU is designed for 100V mains input with a tight upper tolerance. Plugging it straight into 120VAC may lead to unstable 12V output.
