Rally Bike Repair Logs

Repairer: channelmaniac

Symptom: Garbage video - dead

The screen was black with a small section of garbage characters on it. Board would make the coin up sounds when the coin mechs were triggered. Looked at the board carefully and found a corroded pin on a capacitor. This corrosion went down into the PC board and ate an internal trace. This disconnected power from 2 ROMs. Removed the cap, cleaned up as much of the damage as possible, and ran 2 jumper wires to fix the game.

---

---

Repairer: Apocalypse
Source: Rally Bike - Taito 1988 (repair log)
Inputs weren't working and game throwed a tilt error when entering in attract mode and just after rebooted:

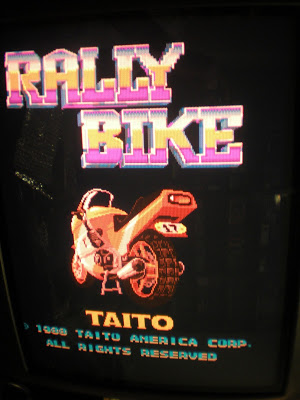

This could have been a terribly difficult repair. Why? Cause on this harware inputs are handled by the sound CPU (Z80). Normally you wouldn't see the link between them. Luckily Caius form JAMMARCADE made a post about this. So I started with the basics in the sound section, I probed the audio RAM and found data signals weren't much healthy. I piggybacked the RAM and game didn't throw the tilt error anymore. After replacing it game worked perfectly:


Game fixed.
Big thank to Caius.
