Sammy Atomiswave SD
| Sammy Atomiswave SD | |
|---|---|
 | |
| Katakana | アトミスウェイブＳＤ |
| Rōmaji | ATOMISUWEIBUSD |
| AKA | AWSD, Atomiswave Sitdown |
| Type | Sitdown |
| Released | 2003 |
| Dimensions | 903 x 750 x 1450 (1765 including Marquee) mm |
| Wiring | JAMMA/Half JVS |
| Monitor | 29 in 15/24/31 kHz (Wei-Ya M3192D) |
| Rotatable | Yes |
| Weight | 102 kg |
| Power Supply | Wei-Ya P271 |

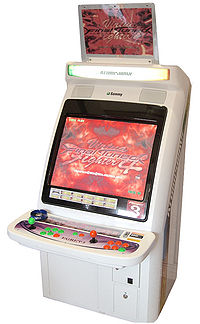

Dedicated candy cab for the Sammy Atomiswave, using the licensed shell of a Taito Egret 3 in combination with a Wei-Ya monitor and power supply.
Information
This cab features a Tri-sync monitor so it can be used for 31K NAOMI and Atomiswave operation. It uses a JVS power supply that supplies 3.3v as well as 5v and 12v. It is mainly JAMMA with some JVS functionality, but in order to use a NAOMI, a JVS IO converter such as the Capcom or Sega IO is required. It features a VGA connector for connecting a JVS board to already.
The default control panel is a 1L6B with a custom memory card reader, used for some Atomiswave games. The control panel housing is compatible with Taito Egret 2, Egret 3, and also Sega Astro/Blast/Naomi Panels. These are commonly seen fitted with a 2L12B Egret 3 panel for two player functionality.
The cabinet can be upgraded with a sound amp easily as it is wired with the necessary 12v and speaker connections for a Taito Stereo Amp.
Additional photos
-
Front -
Left -
Right -
Back -
PCB & Coin doors open -
Front monitor cover open -
Control panel open -
Side Profile
