SNK Neo Candy 25
Jump to navigation
Jump to search
| Neo Candy 25 | |
|---|---|
 | |
| Katakana | ネオキャンディ25 |
| Rōmaji | NEOKYANDI25 |
| Type | Sitdown |
| Released | 199X |
| Dimensions | 850 x 630 x 1488 mm |
| Wiring | JAMMA |
| Monitor | 25 in 15/24 kHz |
| Rotatable | Yes |
| Weight | 89 kg |
| Power Supply | AC100V ±10V (50/60Hz) |
| Power | 120 W |
Basically a Neo 25 with different artwork, wired for JAMMA (instead of just MVS like the non-"Candy" version), and a different topper (to account for the JAMMA wiring - no multi-slot support).
The topper is shared with Neo Candy 29. The topper is meant to house a single marquee. However, if you remove the acrylic glass and the metal plate, behind you will find the four cutouts for NeoGeo mini marquees just like in the Neo 25 / 29.
Gallery
-
'94 cabinet lineup brochure
.jpg)
Control panel 1P / 2P connector pinout
| Up (brown) | Down (red) | Left (orange) | Right (yellow) |
| A (green) | B (blue) | C (purple) | D (grey) |
| NC | NC | GND (black) | Earth GND (green) |

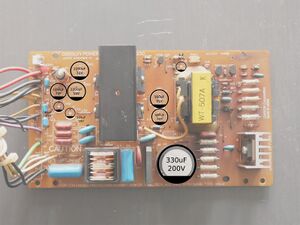

Power Supply Capacitor Map / List
Capacitor Diameter Qty Location 1uF 50V 4mm 1 C54 82uF 25V 6mm 1 C62 220uF 10V 6mm 1 C72 330uF 200V 25mm 1 C4 560uF 35V 13mm 1 C61 680uF 16V 10mm 1 C71 1200uF 10V 10mm 1 C53 2200uF 10V 13mm 2 C51, C52
Credit to nem for the capacitor map!
